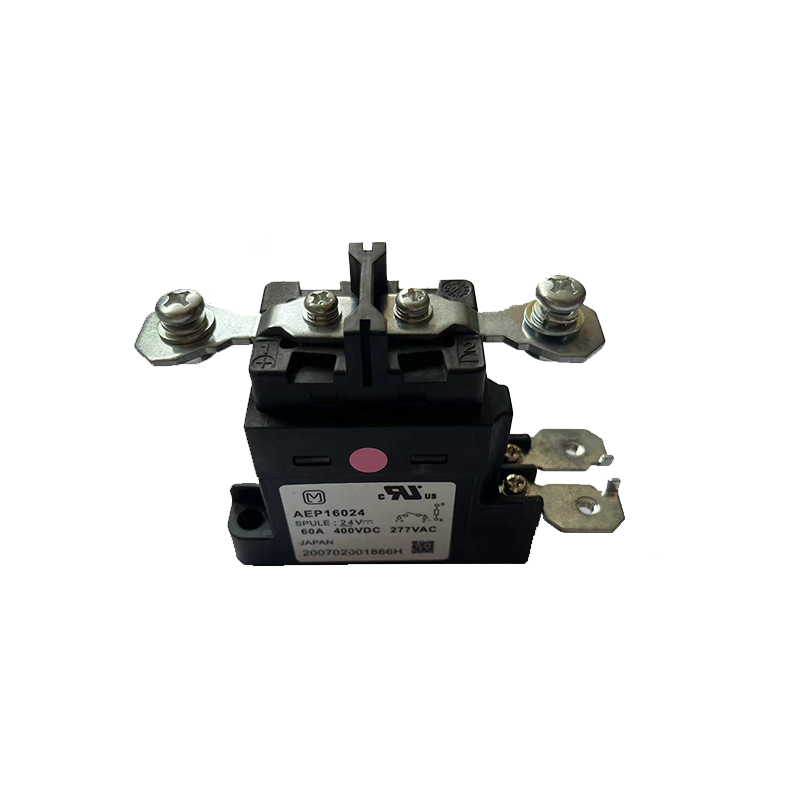

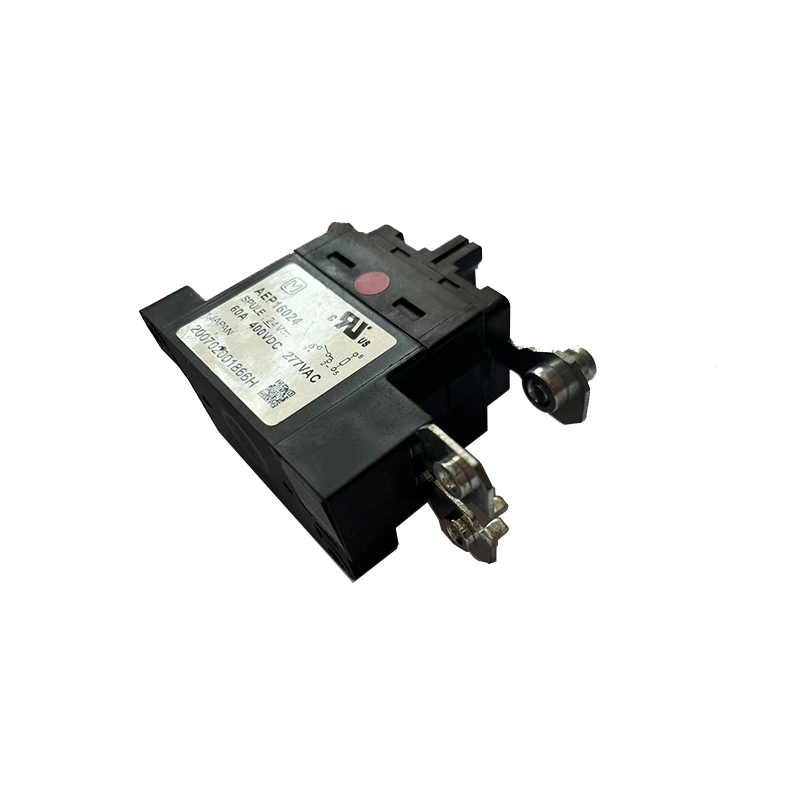

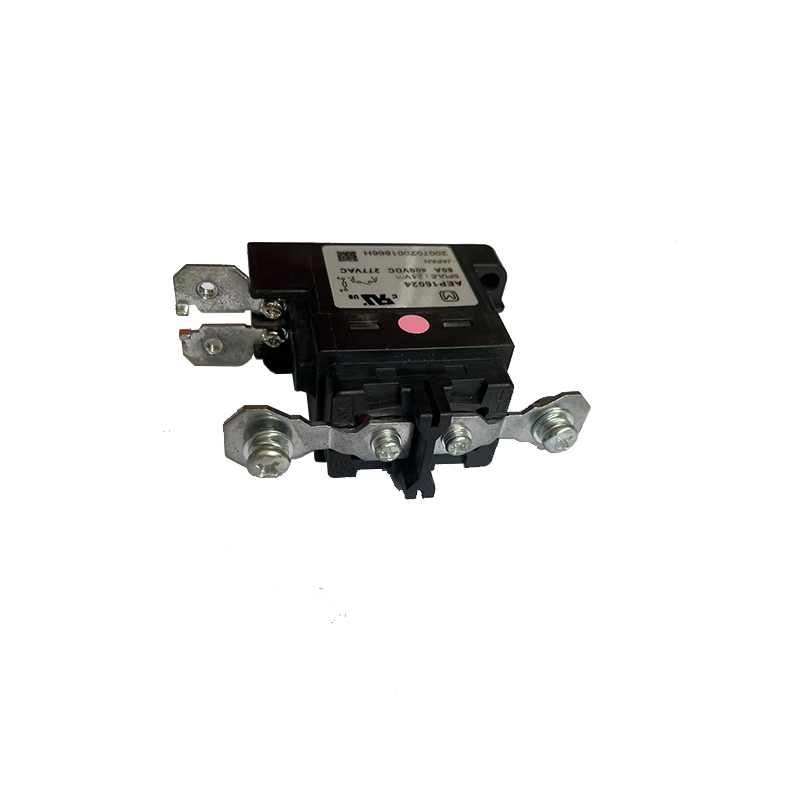

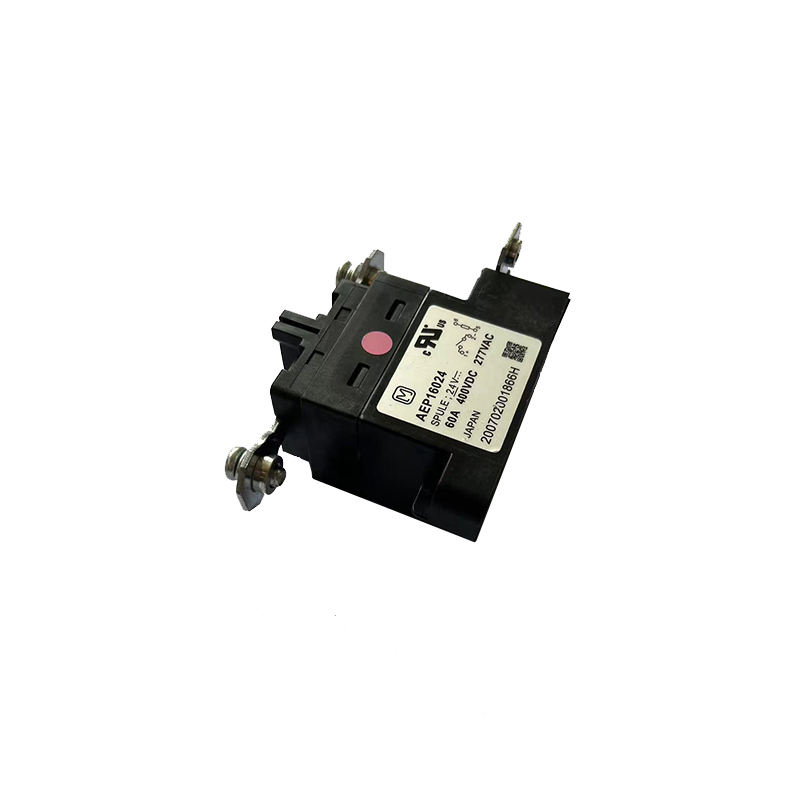

Relay 461-6784 213-0772 24 Volt Pump Switch Assy Magnetic Relay

Magnetic relays are electromechanical devices used to control the flow of electricity in various applications. They serve as switches that open or close circuits based on an electromagnetic force generated by an electric current. Magnetic relays are widely used in industrial, automotive, and consumer electronics due to their reliability and versatility. In this article, we will explore the function, features, and importance of magnetic relays.

The primary function of a magnetic relay is to control a high-power circuit using a low-power signal. When an electric current passes through the coil of the relay, it generates a magnetic field that attracts a movable armature. This movement either opens or closes the contacts within the relay, allowing or interrupting the flow of electricity in the connected circuit.
Switching Control: Magnetic relays can switch on or off various devices, such as motors, lights, and heating elements, based on the input signal.
Isolation: They provide electrical isolation between the control circuit and the load circuit, protecting sensitive components from high voltages or currents.

Coil Voltage: Magnetic relays are available in various coil voltages, allowing them to be used in different applications. Common voltages include 5V, 12V, 24V, and 120V.
Contact Configuration: Relays come with different contact configurations, such as normally open (NO) and normally closed (NC), which determine how the relay behaves when not energized.
Current Rating: Magnetic relays are rated for specific current loads, ensuring they can handle the electrical demands of the devices they control.

Magnetic relays are vital for several reasons:
Control: They enable the control of high-power devices with low-power signals, making them essential in automation and control systems.
Safety: By providing electrical isolation, magnetic relays protect sensitive components and circuits from damage due to overloads or faults.
Versatility: Magnetic relays can be used in a wide range of applications, from industrial machinery to home appliances, making them a versatile choice for electrical control.

Magnetic relays are used in various applications, including:
Industrial Automation: In manufacturing processes, relays control motors, conveyors, and other machinery.
Automotive Systems: Relays are used in vehicles to control lights, horns, and other electrical components.
