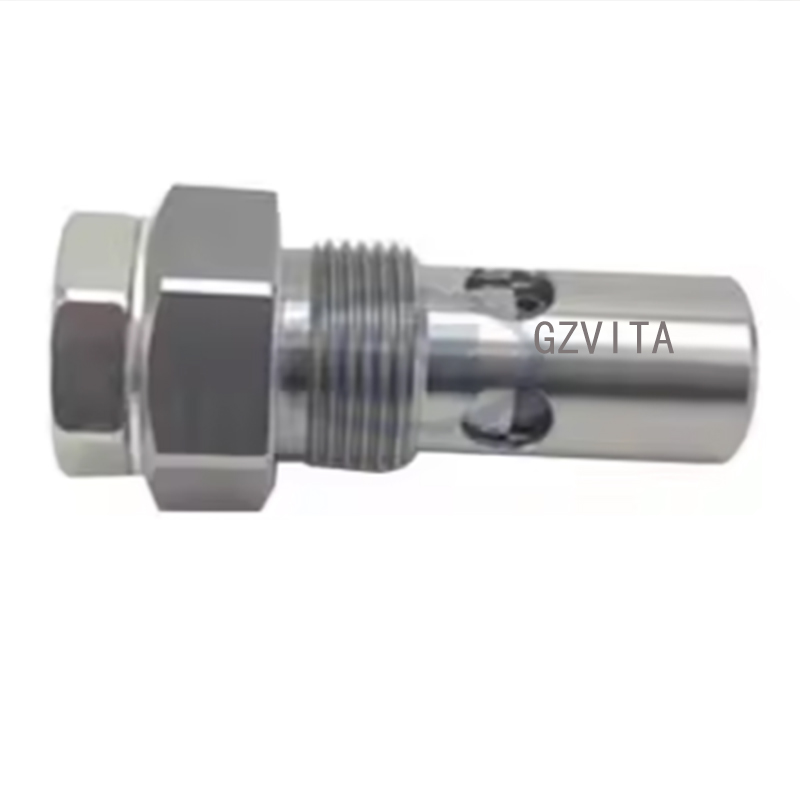

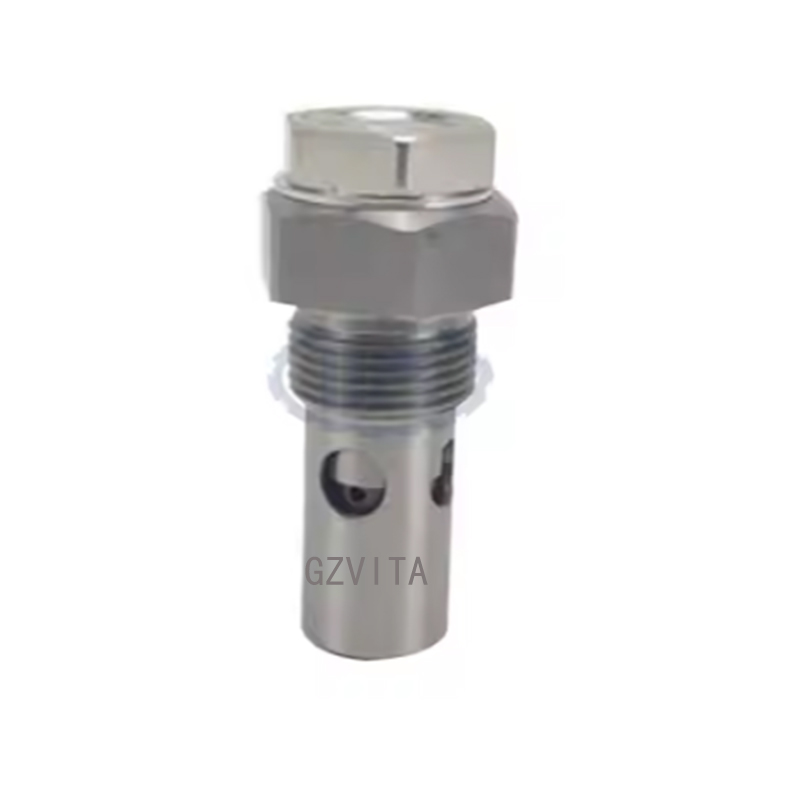

Oil Relief Valve for E320C SK130-8 S6K C6.4 3066 C4.2 D06FR 34340-03021 5I-8066

Installing a relief valve is an important task that helps ensure the safe operation of hydraulic systems by preventing excessive pressure buildup. Here’s a step-by-step guide on how to install a relief valve:

Tools and Materials Needed:
Relief valve
Wrenches or sockets (size depends on your specific setup)
Thread sealant or Teflon tape (if required)
Clean cloth or rag
Safety gloves and goggles
Steps to Install a Relief Valve:

Safety First:
Ensure the hydraulic system is turned off and depressurized. This is crucial to avoid any accidents during installation.
Wear safety gloves and goggles to protect yourself.

Locate the Installation Point:
Identify the appropriate location for the relief valve in your hydraulic system. This is typically on the pump outlet or in the line leading to the actuator.

Clean the Area:
Use a clean cloth to wipe the threads of the fitting where the relief valve will be installed. This helps prevent contamination in the hydraulic system.

Prepare the Relief Valve:
If required, apply thread sealant or Teflon tape to the threads of the relief valve. This helps create a seal and prevents leaks.

Install the Relief Valve:
Screw the relief valve into the designated port or fitting. Use your hands to tighten it initially, then use a wrench to secure it further. Be careful not to overtighten, as this can damage the valve or fitting.

Connect Any Additional Lines:
If the relief valve has additional ports for connecting hoses or lines, ensure they are properly connected and secured.

Check for Proper Orientation:
Ensure that the relief valve is oriented correctly according to the manufacturer’s specifications. Some valves have specific flow directions that must be followed.

Final Inspection:
Double-check all connections and fittings to ensure they are tight and secure.
Inspect the area for any signs of damage or wear.

Repressurize the System:
Gradually repressurize the hydraulic system according to the manufacturer’s guidelines. Monitor for any leaks around the relief valve during this process.

Test the System:
Once the system is pressurized, test the operation of the hydraulic system to ensure the relief valve is functioning correctly. You may need to adjust the pressure setting on the valve according to your system requirements.
