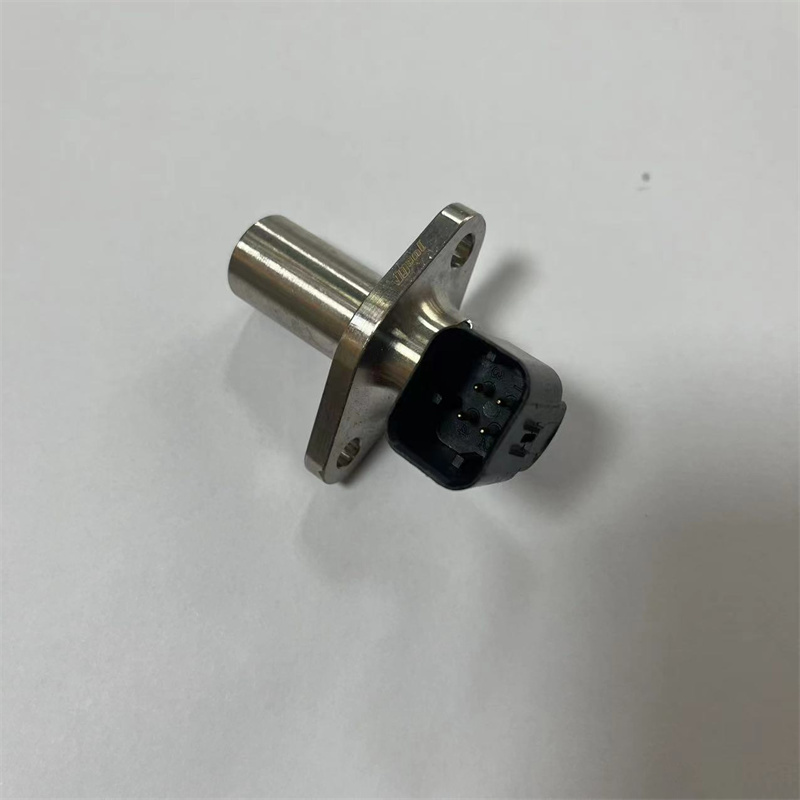

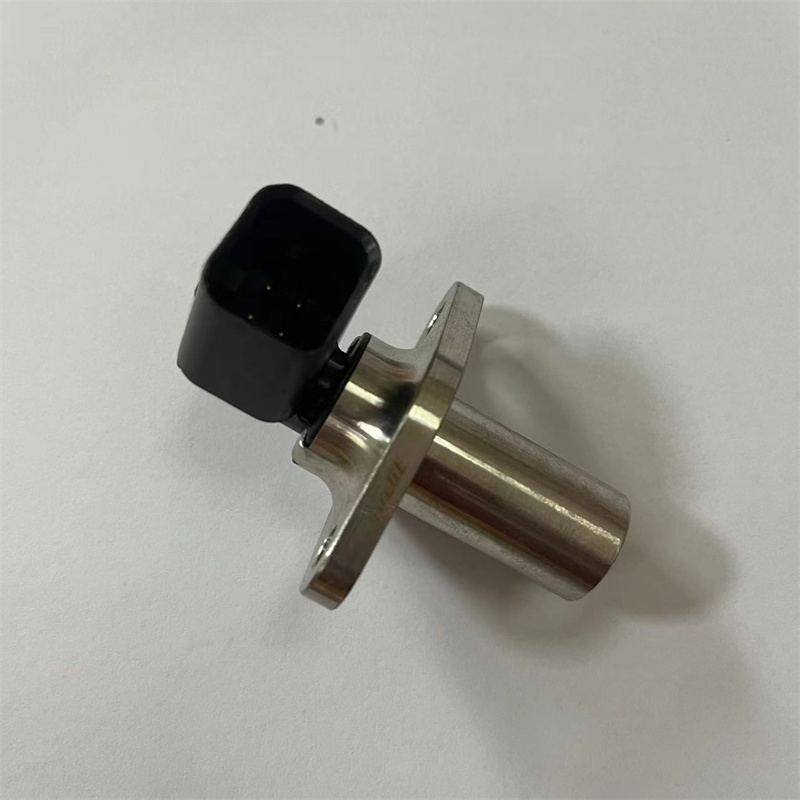

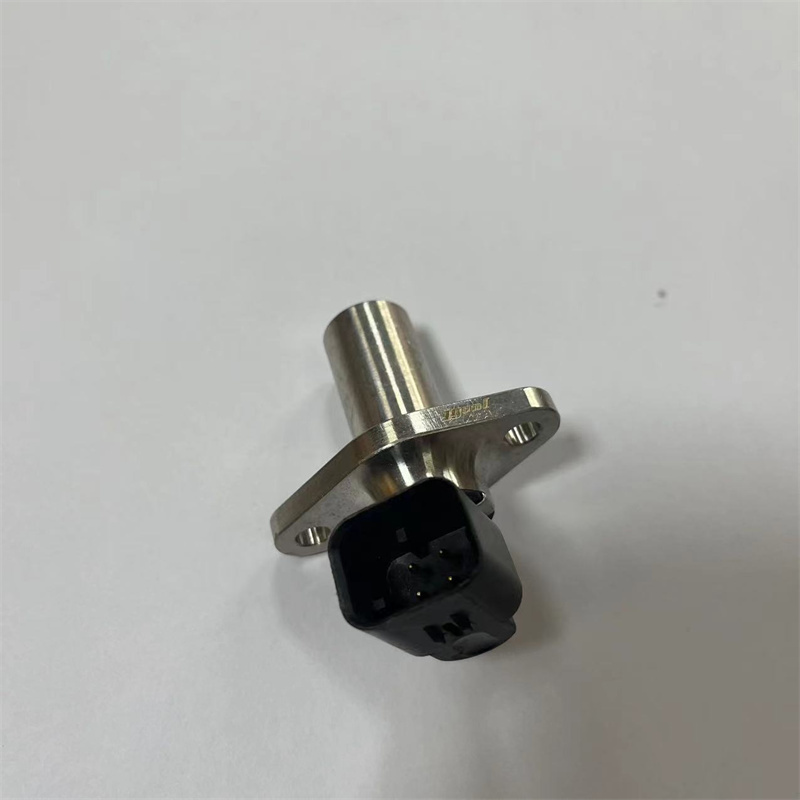

16 Volts Speed Sensor for Cat 973D 3582399 D5R R1700

Installing a machinery speed sensor is an important task that helps monitor the speed of the equipment, ensuring optimal performance and safety. Here’s a step-by-step guide on how to install a speed sensor on machinery, such as an excavator or other heavy equipment:

Tools and Materials Needed:
New speed sensor
Wrenches and sockets
Screwdrivers
Torque wrench
Electrical connectors (if needed)
Wire strippers and crimpers (if needed)
Safety gear (gloves, goggles)
Clean rags

Safety First:
Ensure the machinery is turned off and parked on a stable surface. Engage the parking brake and disconnect the battery to prevent any accidental starts.

Locate the Speed Sensor:
Refer to the machinery’s service manual to locate the existing speed sensor or the designated mounting location for the new sensor. Common locations include near the transmission or on the axle.

Remove the Old Speed Sensor (if applicable):
If you are replacing an old speed sensor, carefully disconnect any electrical connectors. Use the appropriate tools to remove the sensor from its mounting location. Take note of how it is installed for reference.

Inspect the Area:
Before installing the new sensor, inspect the mounting area for any debris, dirt, or damage. Clean the area thoroughly to ensure a proper seal and fit.

Install the New Speed Sensor:
Position the new speed sensor in the designated mounting location. Ensure it is oriented correctly according to the manufacturer’s specifications.

Secure the Sensor:
Use the appropriate bolts or fasteners to secure the speed sensor in place. If the manufacturer specifies a torque setting, use a torque wrench to tighten the bolts to the recommended specifications.

Reconnect Electrical Connectors:
If the speed sensor has electrical connectors, reconnect them securely. Ensure that the connections are clean and free of corrosion. If necessary, use wire strippers and crimpers to attach new connectors.

Check Wiring:
Inspect the wiring leading to the speed sensor for any signs of wear or damage. Replace any damaged wiring to ensure proper functionality.

Reconnect the Battery:
Once the sensor is installed and all connections are secure, reconnect the battery.

Start the machinery and monitor the speed sensor’s readings. Check for any error codes or warning lights on the operator monitor. Ensure that the sensor is functioning correctly and providing accurate speed readings.

Final Inspection:
After testing, perform a final inspection to ensure everything is secure and functioning properly. Check for any leaks or loose connections.
