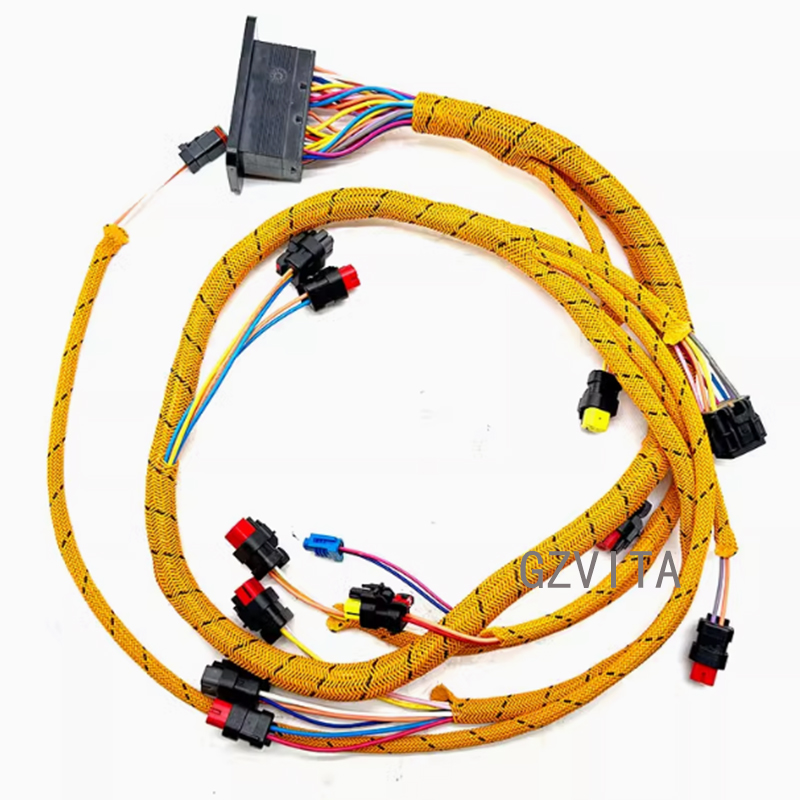

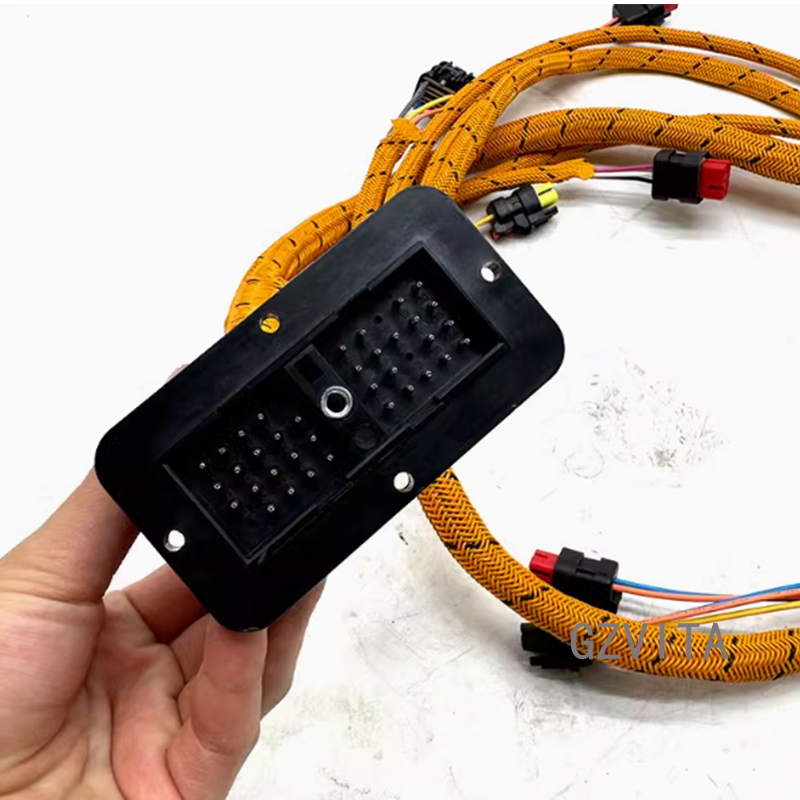

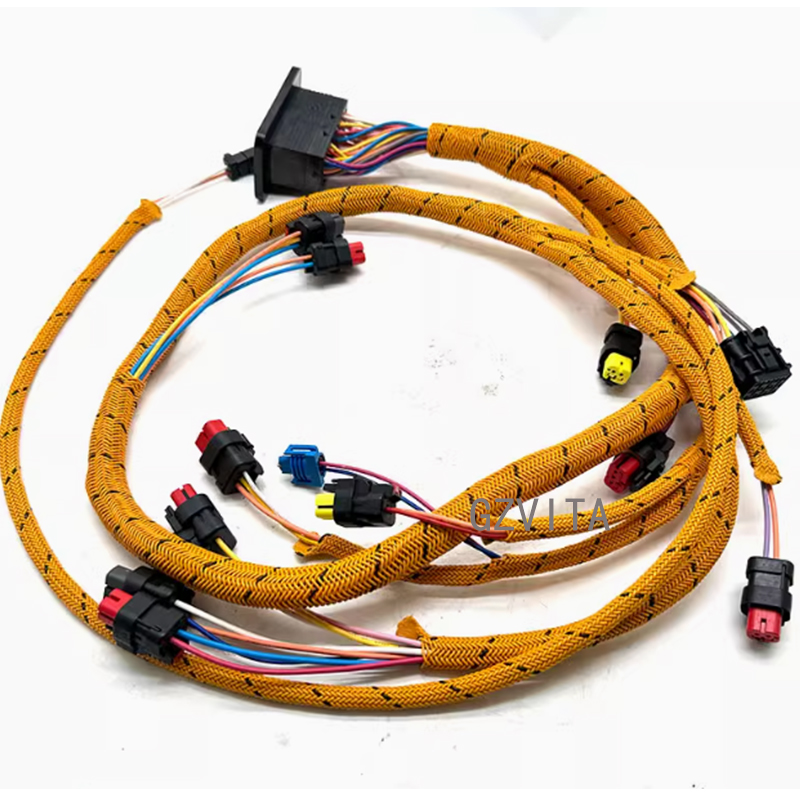

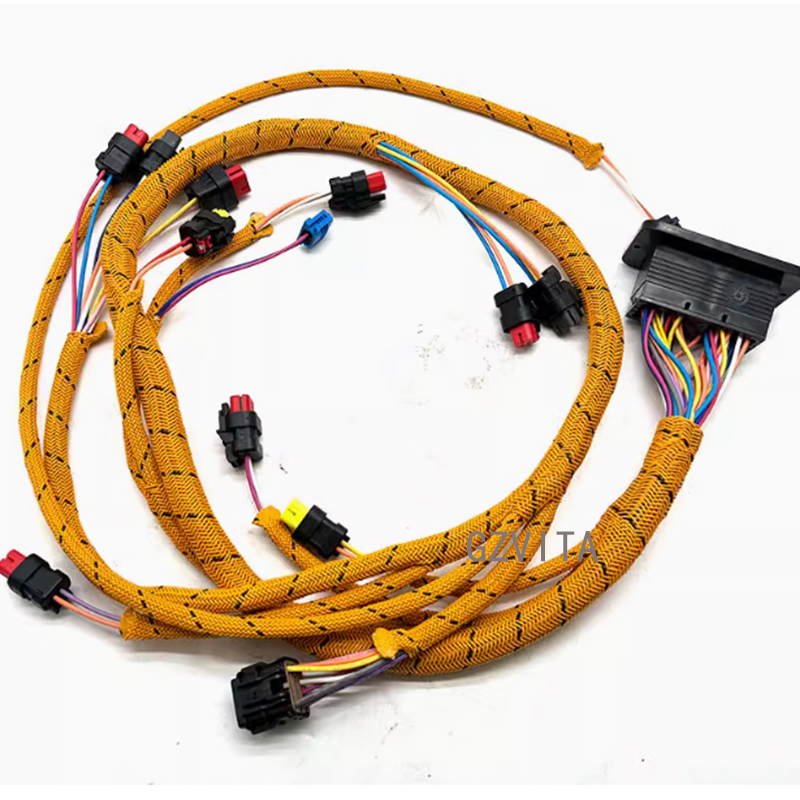

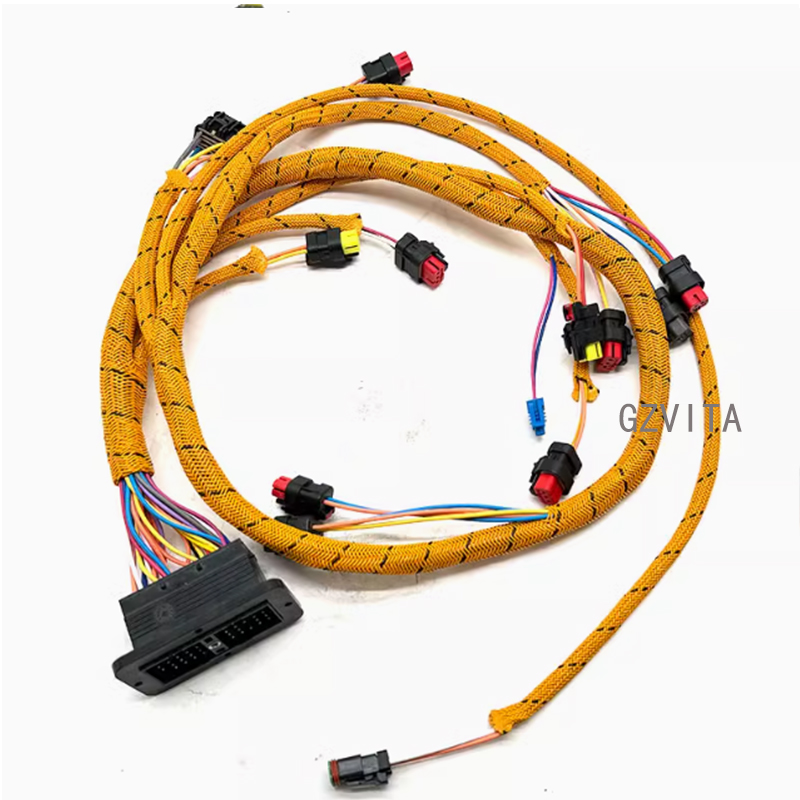

Perkins C4.2 Engine Wiring Harness For CAT311D 312D 313D2

Connecting the engine wiring harness on an excavator is a critical task that requires attention to detail to ensure proper functionality. Here are some tips to help you with this process:

Refer to the Service Manual: Always consult the excavator’s service manual for specific wiring diagrams and instructions. This will provide you with the correct pin configurations and connections for your particular model.

Organize the Wiring Harness: Before connecting, lay out the wiring harness and ensure that all connectors are accessible. This will help you avoid confusion and make the installation process smoother.

Check for Damage: Inspect the wiring harness for any signs of wear, fraying, or damage. Replace any damaged wires or connectors before proceeding to avoid electrical issues.

Clean Connectors: Ensure that all connectors are clean and free of dirt or corrosion. Use electrical contact cleaner if necessary to ensure a good connection.

Match Connectors: Connectors are often designed to fit only one way. Ensure that you match the connectors correctly and avoid forcing them together, as this can cause damage.

Once connected, secure the wiring harness using clips, ties, or brackets as specified in the service manual.

This will prevent movement and potential wear from vibration.

Ensure that all ground connections are secure and free of corrosion. A poor ground can lead to electrical issues and erratic behavior of the engine and other components.

After connecting the wiring harness, perform a thorough check to ensure all connections are secure.

If possible, use a multimeter to test for continuity and proper voltage at various points in the harness.

Always follow safety protocols when working with electrical systems.

Disconnect the battery before making any connections to prevent short circuits or electrical shocks.

If you are working on a complex wiring harness, consider taking photos or making notes during the process. This can be helpful for future reference or troubleshooting.

By following these tips, you can help ensure a successful connection of the engine wiring harness on an excavator, leading to reliable operation and performance.
